IT Guns

X TYPE

C TYPE

TD-620/TG-295

TD-120/ TG-220

TD-430/TG-SPL

TD-230/TG-550
Slimline Series

  • Slim line range covers a wide range of forces and currents while preserving optimum ergonomics.
  • Multi stage cylinder.
  • Mulit position handle
  • Centre of gravity at centre of welding gun location.
  • Easy maintainability.
  • Complete range can be equipped with AC or MFDC transformers.

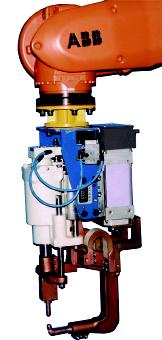

Robot Gun

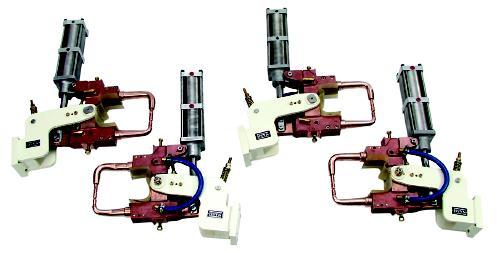

Self Equalising (Auto Gun)

NON-IT GUNS
TD-130/TG-145

TD-150/TG-125



TD-200/TG-70 (Robotic Gun)
TD-415/TG-800



TD-380/TG-110

Hydro-Pneumatic Guns


TD-165/TG-310





  • ISO Transformers 23 KVA - 103 KVA.
  • Medium frequency transformers 56KVA - 250 KVA.
  • Medium Frequency guns 56KVA - 50 KVA.
  • Weld forces upto 600 kgs.
  • Hi-Lift facility on all guns.
  • Gun locking facility in rotary and vertical plane.
  • Easy maintenance as all guns are of modular construction.
  • Constant current through primary and secondary.
  • Thermostats on primary and secondary for total thermal protection.
  • Emergency switch provided on gun (Optional).
  • Selection switches on handle - 2 weld programs,
    weld on/off, Hi-lift and initiation.
  • Special automotive standard safety to give
    30ms/30mA tripping.
